Trolmaster DST-2 Temperature Device Station 240v

Trolmaster DST-2 Temperature Device Station 240v

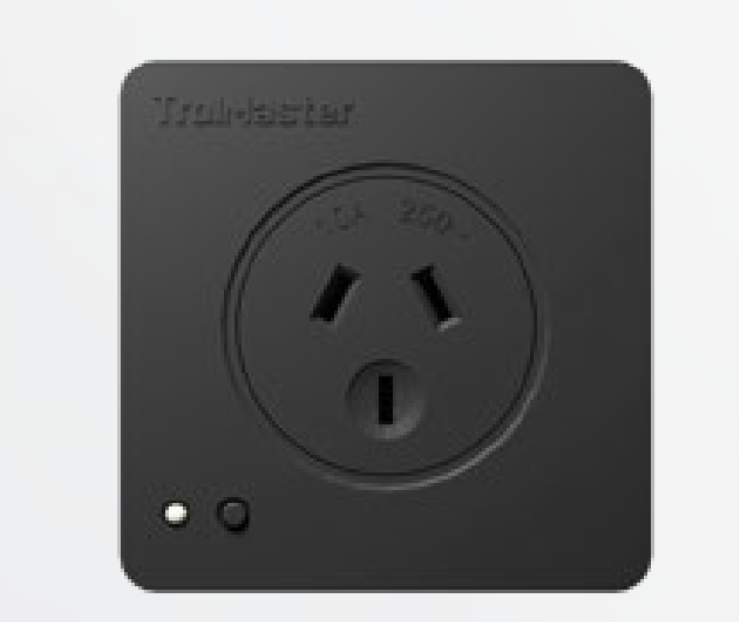

The TrolMaster DST-2 Temperature control modules allow the user to easily connect and control standard heating or cooling devices to the Hydro-x. This module allows control of any heating or cooling device under the world voltage standard (100-240 VAC, 50/60 Hz), up to 10-amps.


LED status:

  • Blinking green FAST: If the LED is blinking quickly, that means the module has not been addressed to the controller OR that module does not have a good connection to the controller.
  • Pressing the small button on the module will address/link the module when first installed.* Blinking green SLOW: If you see a slowly blinking green LED, that means the module is addressed and connected to the controller, and the module is currently turned OFF.
  • SOLID green: If you see the LED is on solid (no blinking) that means the modules are addressed, connected and currently turned ON.
  • Blinking red: If you see the LED change to blinking red, that means the module has been overloaded. To reset the overload unplug the module from the power.
  • By pressing and holding the button on the DSP-2, users can manually override the module and turn it ON / OFF.
